The wire diameter of 2 x 0.34 mm? is impressive and the electrical data speaks for itself: A cable giving great performance at an excellent price, used for stage and studio settings.The large diameter and the low capacity guarantee outstanding transmission quality, even over long distances. The shielding made of polished copper wires is 95 % optically opaque (instead of the usual 85 %).The robust, rubberlike, matt outer sleeve is preferred by stage musicians and guarantees the highest flexibility even in lowest temperatures.Now also available in an FRNC-version!

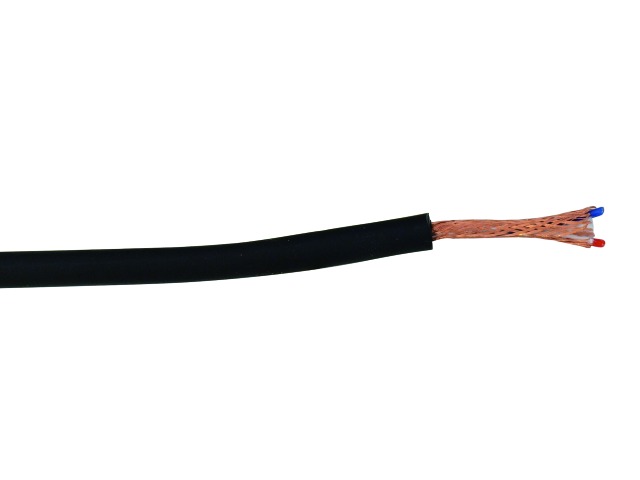

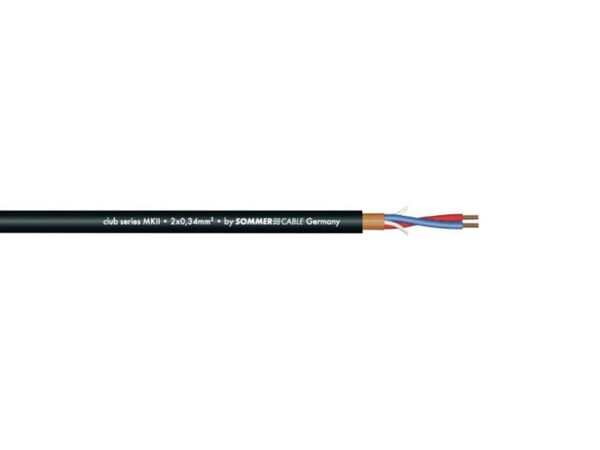

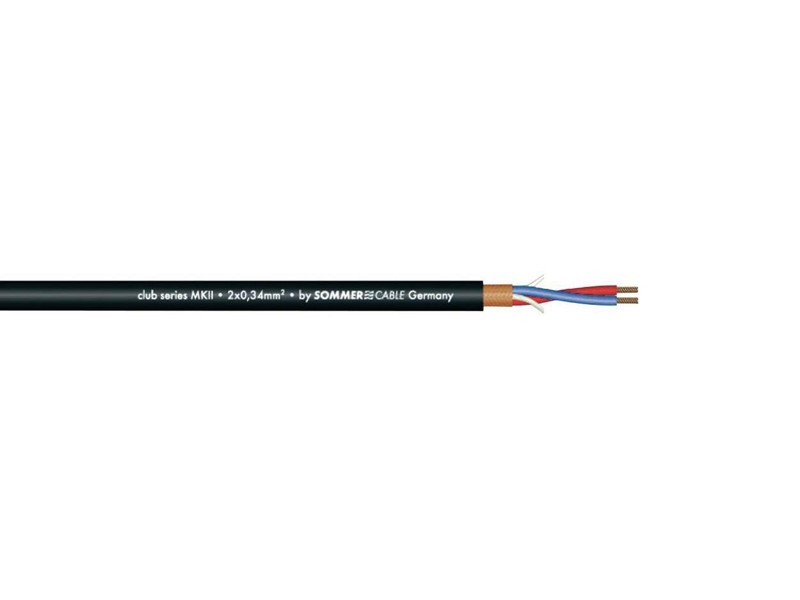

High quality microphone cableHigh transmission quality due to wide cross-section 2 x 0.34 mm?
Very low capacity due to pe insulation
Outstanding shielding due to dense shielding
Highly flexible
Application: stage, studio, permanent installation
Made in Europe
Sekce: ZVUKOVÁ TECHNIKA -> Kabely a konektory -> Kabely -> Metrážové -> Mikrofonní
Druh produktu: High quality microphone cable

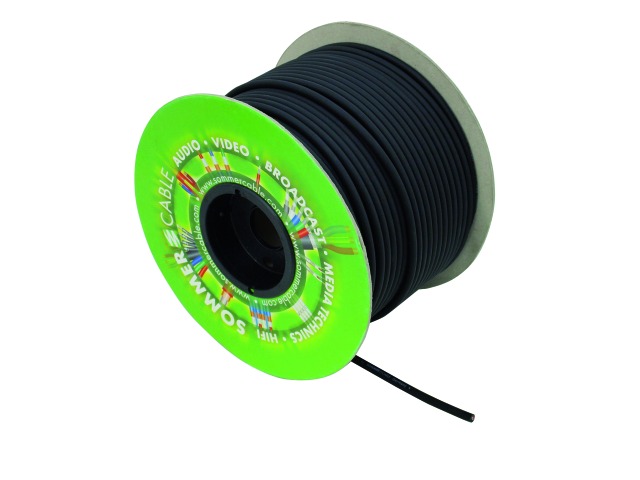

Název produktu: Sommer cable SC-CLUB SERIES MKII black 100m / mikrofonní kabel
Značka: Sommer Cable
Specifikace: Cable construction: 2 x 0,34 mm Miscellaneous Cables
Cable length: 100 m
Color: Black
Weight: 5,30 kg
Construction(2LI2Y0.34mm2)CY
Jacket, diameterPVC 6,5 mm
AWG22
No. of inner conductors2 x 0.34 mm2
Copper strand per conductor19 x 0,15 mm
Conductor insulationPE 1,50 mm
Shieldingcopper braided shielding with 0.10 mm indiv. strand
Shielding factor95 %
Temperature rangemin. -25 C
Temperature rangemax. 70 C
Fire load per m0.22 kWh
Packaging100/500 m roll
Capac. cond./cond. per 1 m58 pF
Capac. cond./shield. per 1 m115 pF
Cond. resistance per 1 km
Shield. resistance per 1 km25 ohms
Insulation resist. per 1 km>,1 Gohms
Surge impedance 100 ohms
Hmotnost: 5,4 kg
Kod produktu: 3030744P
EAN: 4049371001694
