4-point truss system. Strong EN-AW 6082 alloy for high loads. High-quality aluminum-tubes with 50 mm in diameter. Easy installation. Low weight. Distance center – center: 240 mm. For exhibition and shop installers, discotheque and theatre installations. 1 x Connection set included. Trusspipe diameter: 50 mm. Made in Europe; TÜV Süd.
Sekce: PÓDIOVÁ TECHNIKA -> Konstrukce -> Hliníkové konstrukce -> 4-bodový systém -> Quadlock 6082
Druh produktu: 4-point truss system

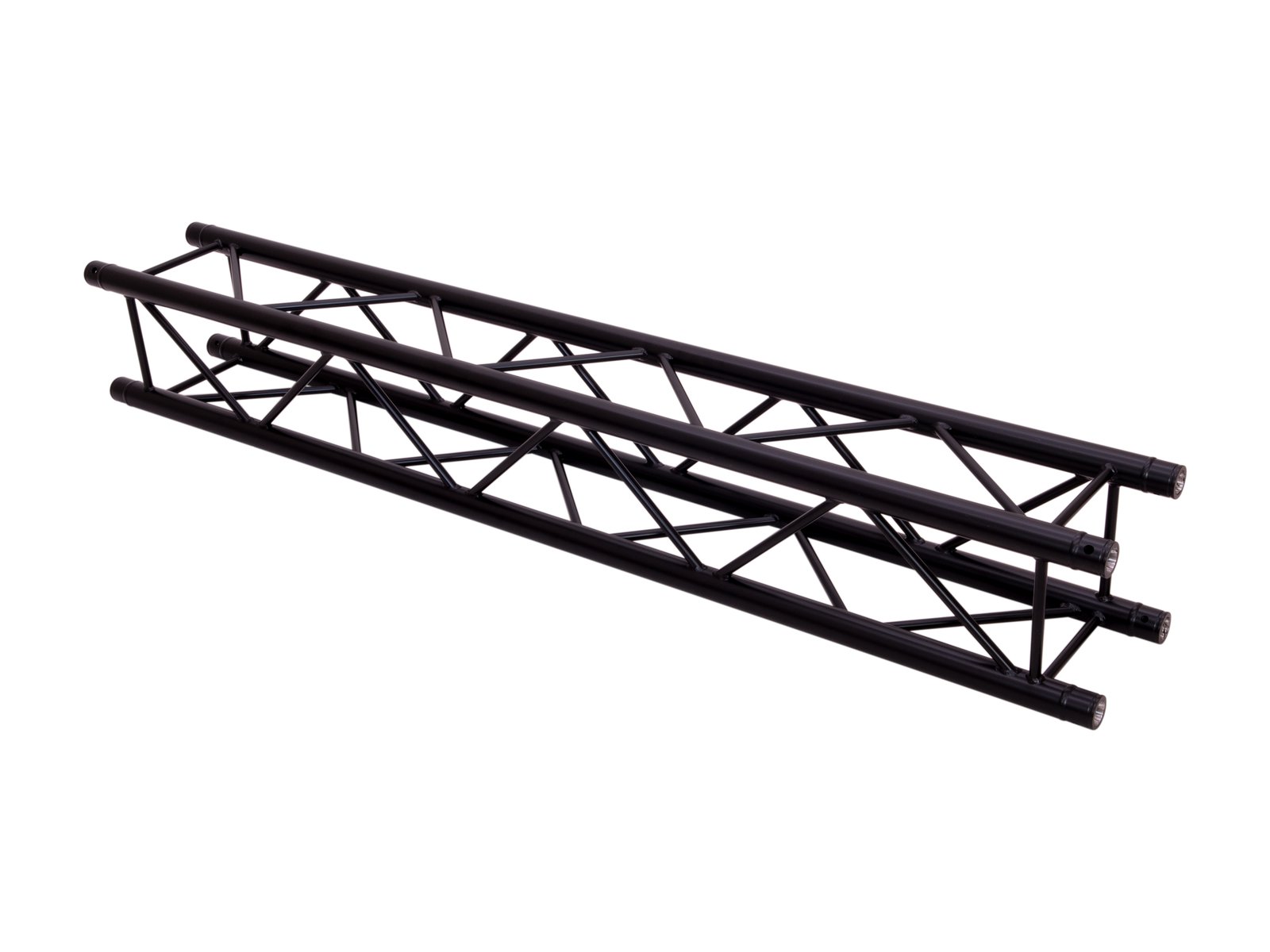

Název produktu: Alutruss Quadlock S6082-500, rovný díl 0.5 m, černý
Značka: Alutruss
Specifikace: Main chords: 50 x 2 mm
Braces: 16 x 2 mm
Alloy: EN-AW 6082 T6 (AlMgSi1 T6)
Welding material: AlMg 5
Welding technique: TIG-welding
Outer dimensions:
Width: 290 mm
Height: 290 mm
Length: 500 mm
Trusspipe: 50 mm x 2 mm
Color: Black
Strut diameter x thickness: 16 x 2mm
Length: 500 mm
Weight: 4,5 kg
Kod produktu: 60306413
EAN: 4026397643947
