Deco lock DQ4-500, rovný díl 0,5m

3090

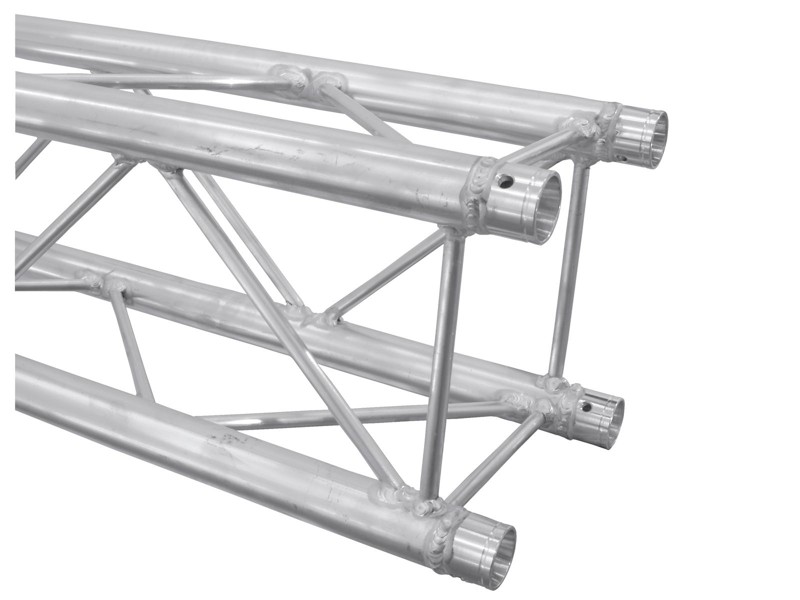

DECOLOCK DQ4 4-point truss systemDECOLOCK DQ4 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The four main chords are made of 35 mm aluminum tube with 2 mm wall thickness and offer sufficient strength at a low weight. The braces have a diameter of 10 mm with 2 mm wall thickness and provide the system with a decorative appearance.With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to

Trusspipe: 35 mm x 2 mm
Color: Alu colored
Trusspipe: 35 x
Welding material: AlMg 5
Welding technique: TIG-welding
Alloy: AlMgSi 0.5
Strut diameter x thickness: 10 x 2mm
Length: 500 mm

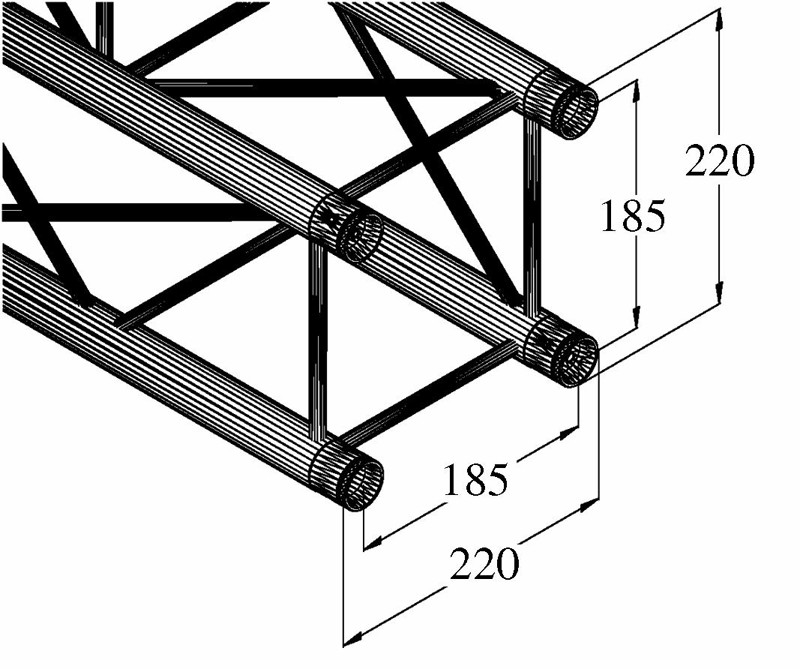

Width: 220 mm
Height: 220 mm
Weight: 2,20 kg

Datum doručení:GLS: 22.12.2022

Katalogové číslo: DS37897687 Kategorií: , , , ,

DECOLOCK DQ4 4-point truss systemDECOLOCK DQ4 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The four main chords are made of 35 mm aluminum tube with 2 mm wall thickness and offer sufficient strength at a low weight. The braces have a diameter of 10 mm with 2 mm wall thickness and provide the system with a decorative appearance.With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.DECOLOCK is primarily designed for decorative installations and can be used for permanent or temporary installations due to

Trusspipe: 35 mm x 2 mm

Color: Alu colored

Trusspipe: 35 x

Welding material: AlMg 5

Welding technique: TIG-welding

Alloy: AlMgSi 0.5

Strut diameter x thickness: 10 x 2mm

Length: 500 mm

Width: 220 mm

Height: 220 mm

Weight: 2,20 kg

Oddělení: Hudební nástroje
Sekce: PÓDIOVÁ TECHNIKA > Konstrukce > Hliníkové konstrukce > 4-bodový systém > Decolock DQ4
Jméno produktu: Deco lock DQ4-500, rovný díl 0,5m
Výrobce: Alutruss
Dodání: 5 dní
