Eurolite DMX Split 8X RDM Splitter

6490

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR socketsDMX splitter for splitting one DMX input signal to 8 DMX outputs

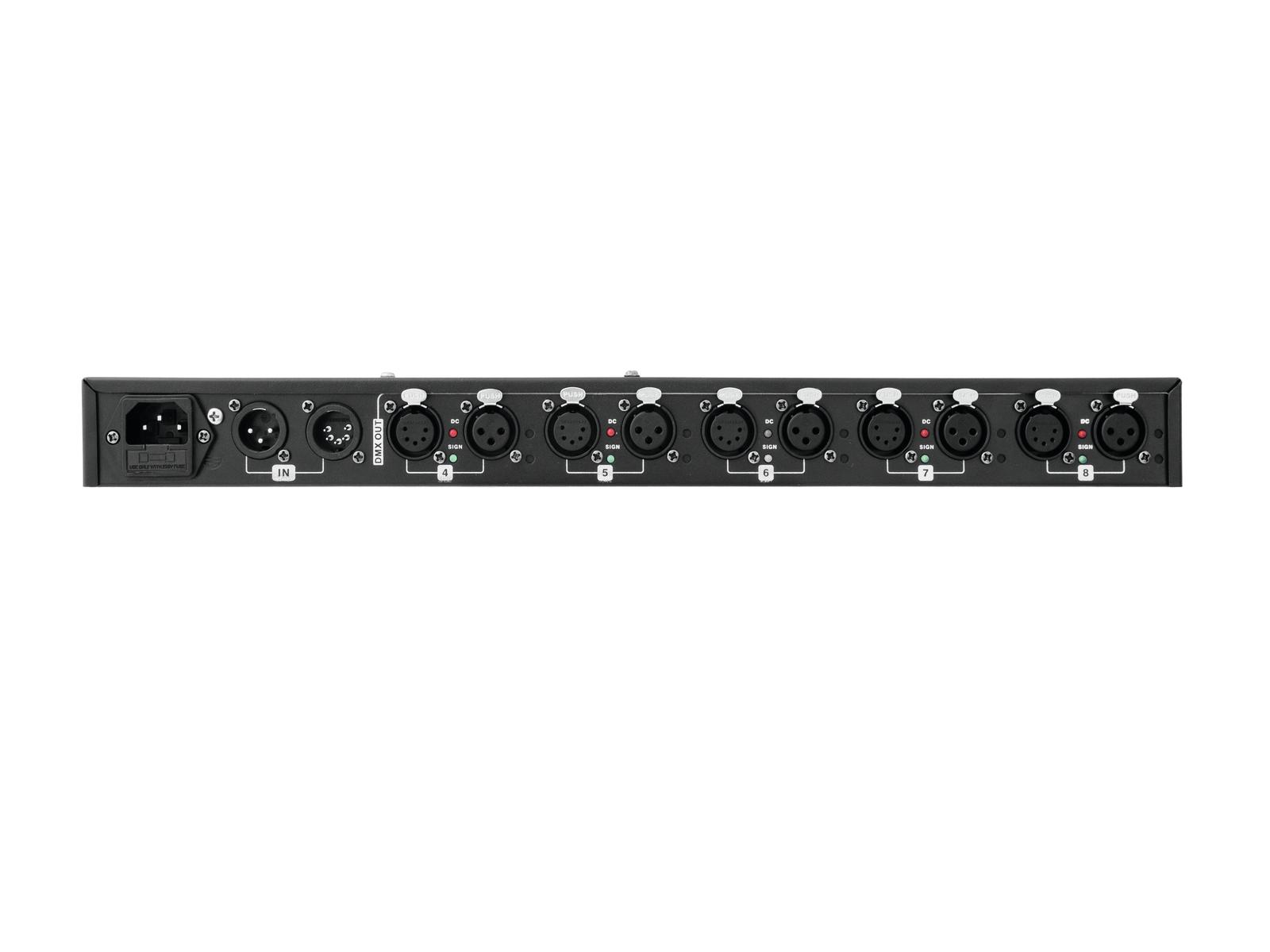

Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
Additional QuickDMX input for wireless reception of DMX signals
Supports RDM for bidirectional communication over the DMX line
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Input and outputs XLR 3-pin and 5-pin each
Input and outputs galvanically isolated
Each DMX output with independent driver and status indicators
Input and outputs with a set of respective power supply and internal fuse
Switchable termination resistor
Rack mounting

Power supply: 110-240 V AC, 50/60 Hz
Power consumption: 5 W
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Width: 48,3 cm
Height: 4,45 cm
Depth: 14,5 cm
Weight: 2,20 kg
DMX connection: 3-pin and 5-pin XLR
QuickDMX connection: 5-pin XLR
Dodání: 5 dní

Katalogové číslo: DS72773170 Kategorie: , ,

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR socketsDMX splitter for splitting one DMX input signal to 8 DMX outputs

Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output

Additional QuickDMX input for wireless reception of DMX signals

Supports RDM for bidirectional communication over the DMX line

Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM

Input and outputs XLR 3-pin and 5-pin each

Input and outputs galvanically isolated

Each DMX output with independent driver and status indicators

Input and outputs with a set of respective power supply and internal fuse

Switchable termination resistor

Rack mounting

Power supply: 110-240 V AC, 50/60 Hz

Power consumption: 5 W

Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)

Width: 48,3 cm

Height: 4,45 cm

Depth: 14,5 cm

Weight: 2,20 kg

DMX connection: 3-pin and 5-pin XLR

QuickDMX connection: 5-pin XLR
