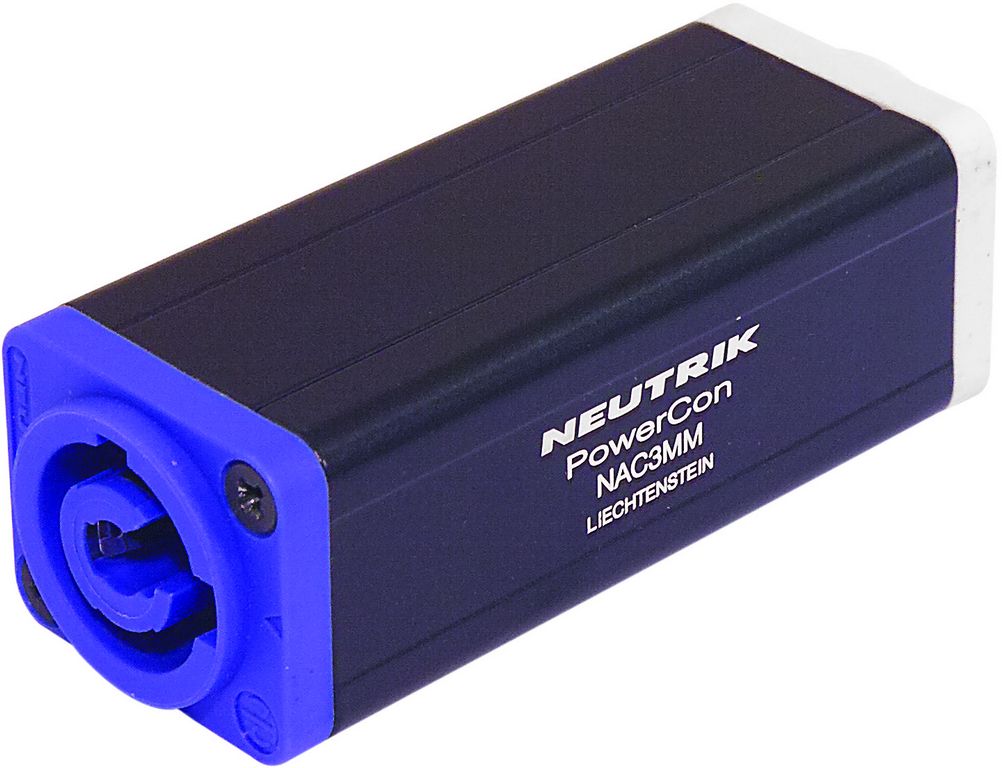

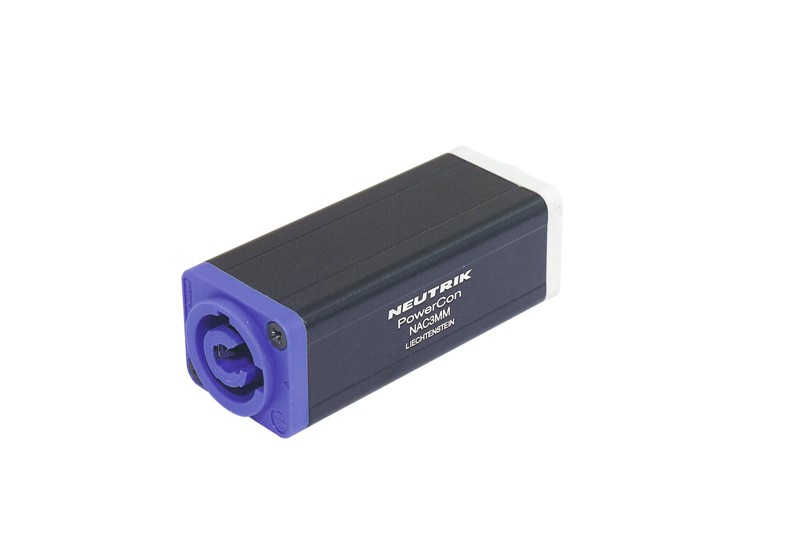

Neutrik PowerCon adapter

819

Adapter for NAC3MPA onto NAC3MPB chassis plugLeading ground contact
Due to the two non-interchangeable plug types (A-type, B-type), a short circuit is impossible
Appropriate plugs can be identified mechanically and by color
Made in Europe

Dostupnost: 5 dní
Doručení:
Zásilkovna Zásilkovna: 49 Kč
PPL PPL: 99 Kč
Značka: Neutrik
Katalogové číslo: 30208546 Kategorie: , , ,

Adapter for NAC3MPA onto NAC3MPB chassis plugLeading ground contact
Due to the two non-interchangeable plug types (A-type, B-type), a short circuit is impossible
Appropriate plugs can be identified mechanically and by color
Made in Europe

Sekce: ZVUKOVÁ TECHNIKA -> Kabely a konektory -> Konektory -> Spojky
Druh produktu: Adapter for NAC3MPA onto NAC3MPB chassis plug
Název produktu: Neutrik PowerCon adapter
Značka: Neutrik
Specifikace: IP classification: IP20
Weight: 0,06 kg
Number of contacts: 2 + PE
Rated current per contact: 20 A RMS
Rated voltage: 250 V AC
Dielectric strength: 4000 V DC
Contact resistance:
Insulation resistance after damp heat test: >,100 Mohms
Creepage distance: according to IEC 664-1
Cable retention force: = 220 N, depending on cable dia and material
Wiring: Flat tabs for FASTON 4.8 mm x 0.5 mm (0.187” x 0.02”) or soldering
Solderability: complies with IEC 68-2-20
Housing: PA 6 30% GR
Insert: PA 6 30% GR
Contacts: CuZn39Pb3 / CuSn6
Contact surface: L+N 20 m Ag plated, Earth 4 m Ag plated
Chuck: POM
Temperature range: -30C to +80C
Flammability: UL94HB
Kod produktu: 30208546
EAN: 2037153113552
