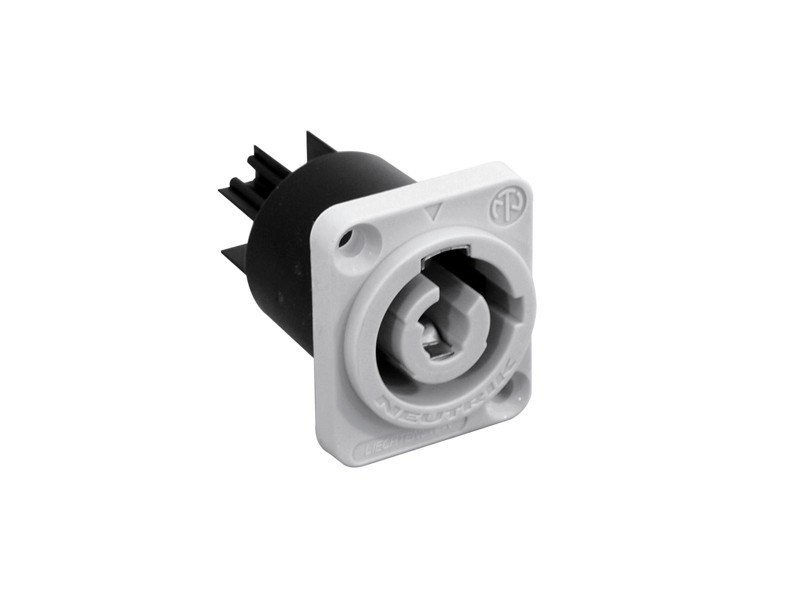

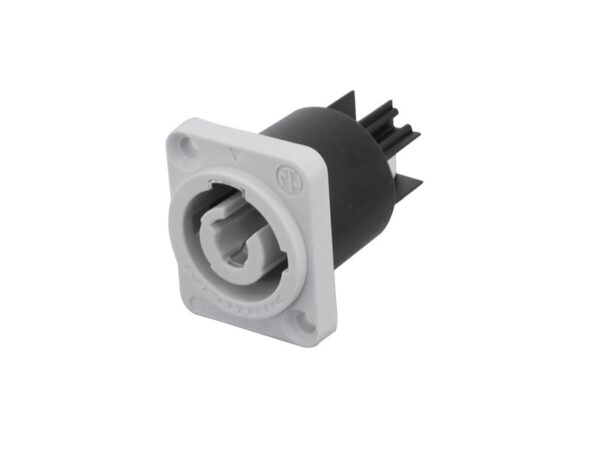

NEUTRIK chassis connectorPremating safety ground
Quicklock with securing lever
Cable O.D. range: 5 – 15 mm
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
Appropriate plugs are identified by mechanical keyways and by color
Connector type: Powercon (gray)
Plug construction: Mounting version
Made in Europe
Sekce: ZVUKOVÁ TECHNIKA -> Kabely a konektory -> Konektory -> Speakon -> Na zabudování
Druh produktu: NEUTRIK chassis connector
Název produktu: Neutrik PowerCon grey panel NAC3 MPB-1
Značka: Neutrik
Specifikace: IP classification: IP20
Weight: 0,01 kg
Number of contacts: 2 + PE
Rated current per contact: 20 A RMS
Rated voltage: 250 V AC
Dielectric strength: 4000 V DC
Contact resistance:
Insulation resistance after damp heat test: >,100 Mohms
Creepage distance: according to IEC 664-1
Cable retention force: = 220 N, depending on cable dia and material
Wiring: Flat tabs for FASTON 4.8 mm x 0.5 mm (0.187” x 0.02”) or soldering
Solderability: complies with IEC 68-2-20
Housing: PA 6 30% GR
Insert: PA 6 30% GR
Contacts: CuZn39Pb3 / CuSn6
Contact surface: L+N 20 m Ag plated, Earth 4 m Ag plated
Chuck: POM
Temperature range: -30C to +80C
Flammability: UL94HB
Kod produktu: 30208544
EAN: 2037153106233
