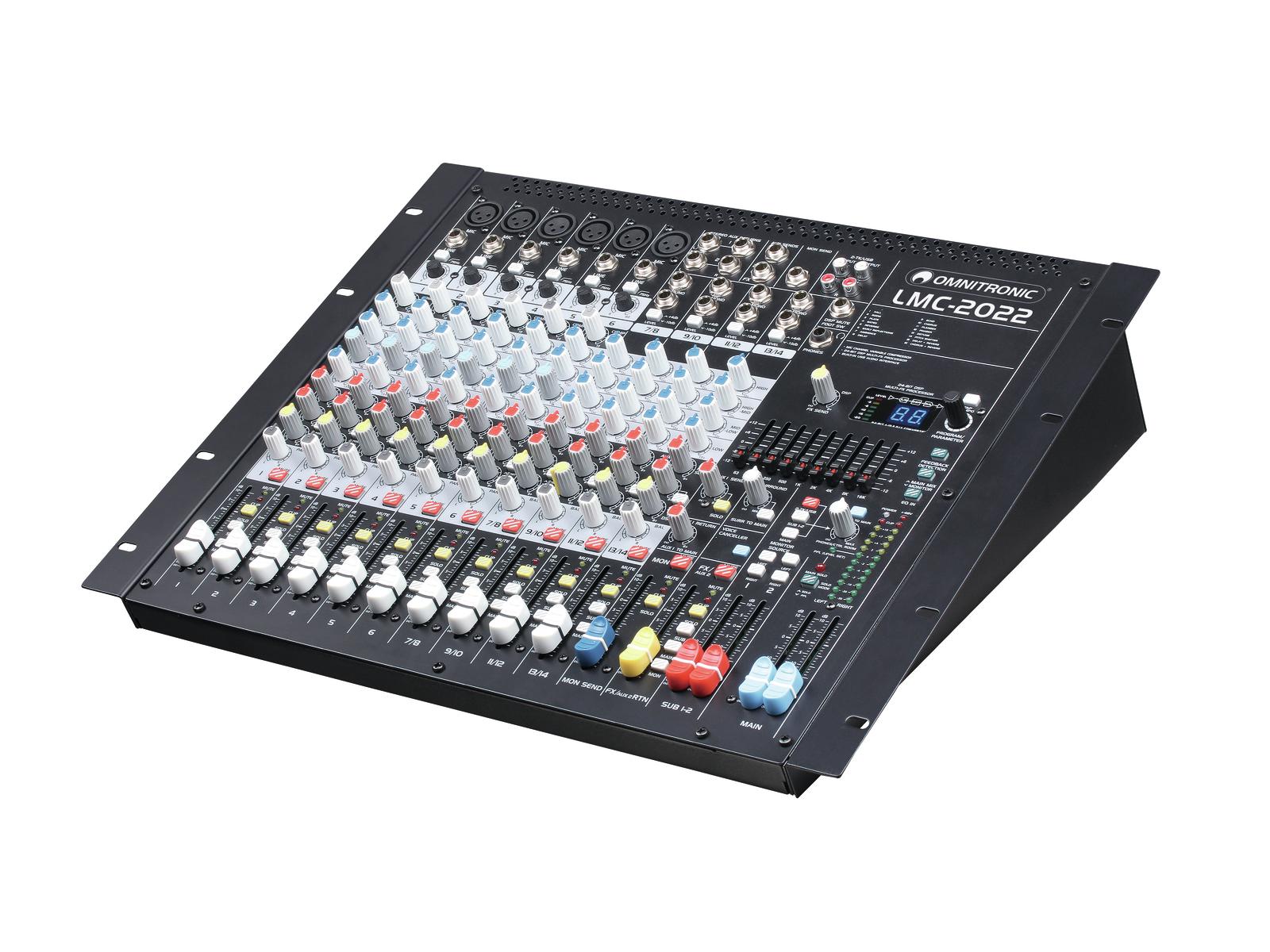

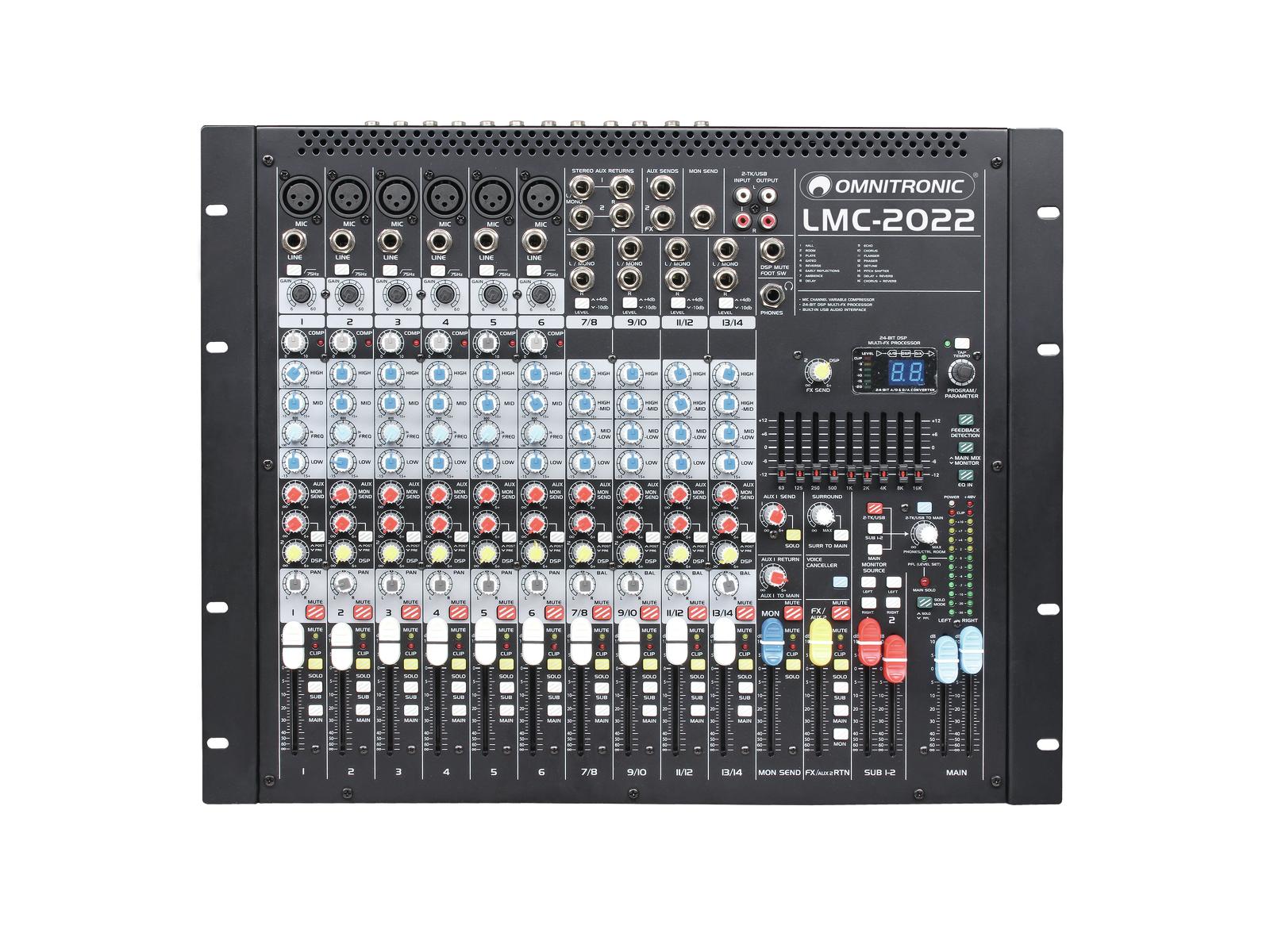

Omnitronic LMC-2022FX USB Mixing console

10390

Professional live mixing consoles with British EQ, FX unit and USB interfaceEffortlessly achieve the right sound with the LMC series by OMNITRONIC! The incredibly user-friendly mixing consoles provide a warm, natural sound with outstanding audio parameters, an extensive set of features and maximum reliability – ideal for professional studio recordings, live performances, and fixed PA installations. Especially the 2022FX has several useful features that are unparalleled in this price range: feedback detection system, voice canceller, and 3D stereo surround effect.All mono channels feature extremely low-noise, top-notch microphone preamps that offer an extraordinary 130 dB of dynamic range, and a bandwidth ranging from below 10 Hz to over 200 kHz for crystal-clear signal reproduction. The incredibly warm and natural equalizers used for all channel strips are based on classic “British EQ“ circuitry from mixing consoles of the `60s and `70s. Additionally, your LMC series mixing console has a studio-grade compressor with easy one-knob functionality on each mono channel plus a 24-bit FX processor with 16 editable effects which can be added to individual channels, busses or the main mix. Utilizing the built-in USB audio interface with up to 48 kHz sample rate, you can link your Windows or Mac computer and record your sessions instantly.
Professional audio mixer with British-style EQ, compressor, effect unit and USB interface6 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
6 inserts for flexible connection of outboard equipment on each mono channel
4 stereo input channels with 4-way EQ, level selection and balance control
State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
Exceptional British EQs for warm and musical sound
Studio-grade compressors with easy one-knob functionality and control LED on each mono channel , , ,
24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
Intelligent feedback detection system makes eliminating feedback frequencies easy
Voice canceller filters out vocal portions for karaoke applications
Incredible 3D stereo surround effect for an enhanced listening experience
9-band stereo graphic EQ with illuminated faders allows tuning monitor or main mixes
3 aux sends per channel: aux 1 pre-fader for monitoring, aux 2 pre/post-fader switchable for monitoring/FX applications, aux 3 post fader for internal FX
2 subgroups with separate outputs for added routing flexibility
2 stereo aux returns with flexible routing
Clip LEDs on all channels
Routing switches for mute, main mix, subgroup and solo/PFL on all channels
Balanced main mix outputs with 6.3 mm jack and gold-plated XLR connectors
Control room/phones outputs with multi-input source matrix
CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
Precise 12-digit level meter
BNC lamp socket
FX mute with remote control via footswitch
+48 V phantom power, can be switched centrally
Incl. brackets for rack installation
DSP: Digital signal processor
Master equalizer: 1 x Graphic equalizer 9-band Stereo
Housing design: (19“) 48.3 cm rack installation possible

Power supply: 110-240 V AC, 50/60 Hz
Power consumption: 50 W
Frequency range: 20 – 20000 Hz
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Housing design: (19“) 48.3 cm rack installation possible
Width: 48,3 cm
Height: 12,7 cm
Depth: 40 cm
Weight: 6,25 kg
Inputs:
Mic: XLR balanced, 2.6 kohms
Line (mono): 6.3 mm jack balanced, 10 kohms,
Line (stereo): 6.3 mm jack L/R balanced, 20 kohms
2-Track: RCA L/R, 10 kohms
Aux Return: 6.3 mm jack L/R balanced, 10 kohms
Inserts: 6.3 mm jack unbalanced, 10 kohms

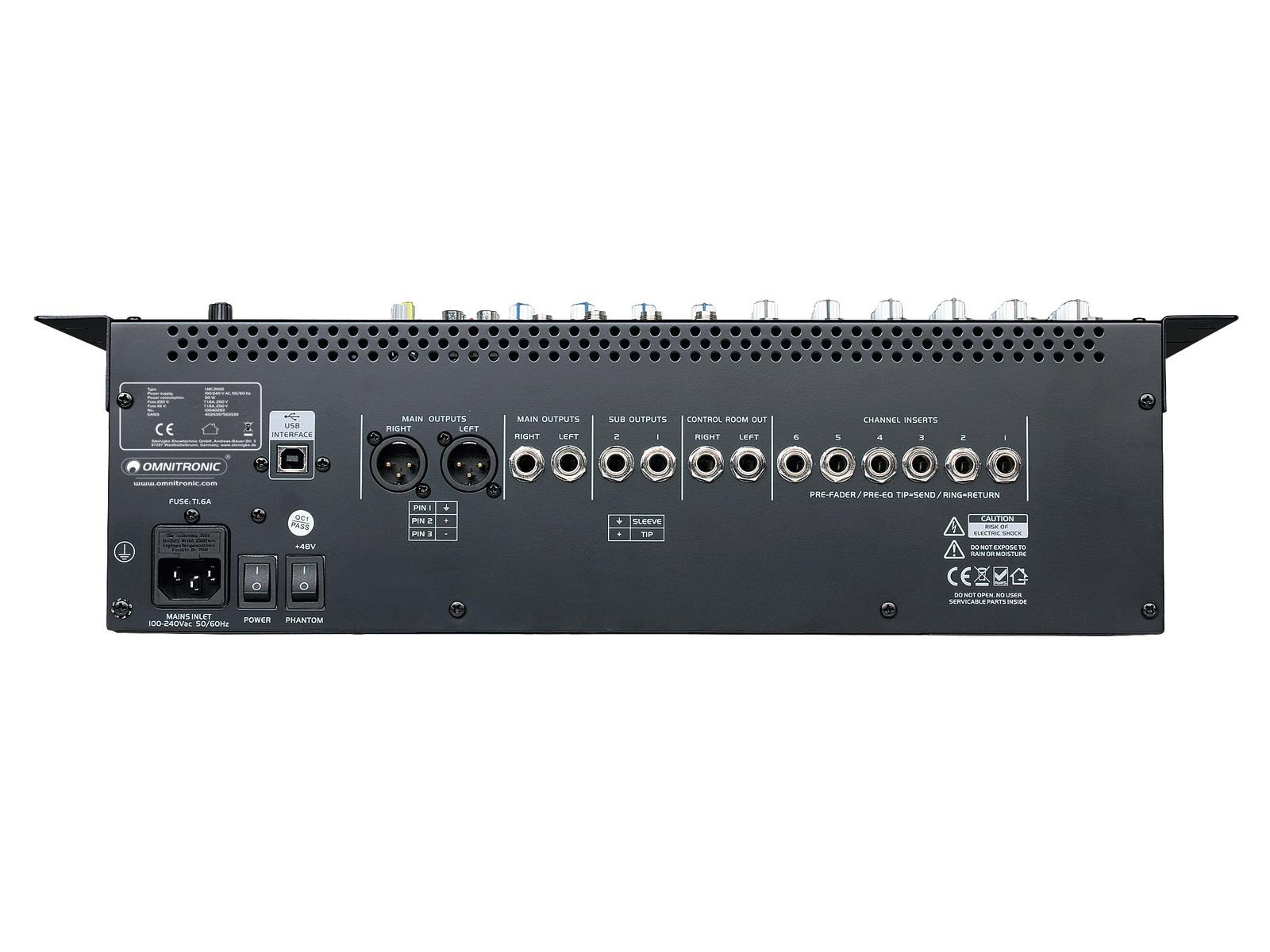

Outputs:
Master: XLR and 6.3 mm jack L/R balanced, max. +28 dBu
ALT 3-4: 6.3 mm jack balanced, max. +22 dBu
Control Room: 6.3 mm jack L/R unbalanced, max. +22 dBu
Aux Send: 6.3 mm jack L/R unbalanced, max. +22 dBu
Tape Out: RCA L/R, max. +22 dBu
Mon Send: 6.3 mm jack L/R unbalanced, max. +22 dBu
Headphones output: 6.3 mm jack unbalanced, max. +19 dBu
Headphones impedance: >,8 ohms
USB interface: type B, 16 bit/48 kHz
Distortion: 0.05 %
S/N ratio: 110 dB
Crosstalk: 89 dB
Low Cut: 75 Hz, 18 dB/octave
Phantom power: +48 V
Tone control mono channels:
Treble: 15 dB at 12 kHz
Middle: 15 dB at 100-800 Hz
Bass: 15 dB at 80 Hz
Tone control stereo channels:
Treble: 15 dB at 12 kHz
Low middle: 15 dB at 3 kHz
High middle: 15 dB at 500 Hz
Bass: 15 dB at 80 Hz
Dodání: 5 dní

Katalogové číslo: DS32803686 Kategorie: , ,
