2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality. Integrated MagicEQ enables amazing microphone modeling of hand-held microphones. Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets. Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone. DSP programming and management via Ethernet port and intuitively operated PC software. High-quality true diversity reception. 2 license-free frequency ranges: 823-832MHz (Duplex Gap)and 863-865MHz. 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth. Parallel operation of up to 9 systems is possible without any interference. Pilot tone technology (PLL) and noise squelch for interference-free operation. Operation range with line of sight approx. 80 meters. Automatic frequency scan (AFS) finds interface-free channels. Infrared interface for easy and error-free channel transfer to transmitters via infrared signal. LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency. Multiple units can be linked with network cables. Lock function avoids accidental changing of settings. XLR and 6.3 mm jack output. 2 detachable BNC antennas allow for use with the R-14D antenna divider. Matching hand-held microphone (UR-260D) optionally available. Delivery includes jack cable and power unit. Durable metal housing. 483 mm rack installation possible with supplied mounting brackets. License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis).
Sekce: ZVUKOVÁ TECHNIKA -> Mikrofony -> Bezdrátové (VHF a UHF) -> Příslušenství -> Přijímače
Druh produktu: True diversity wireless receiver with DSP for micr

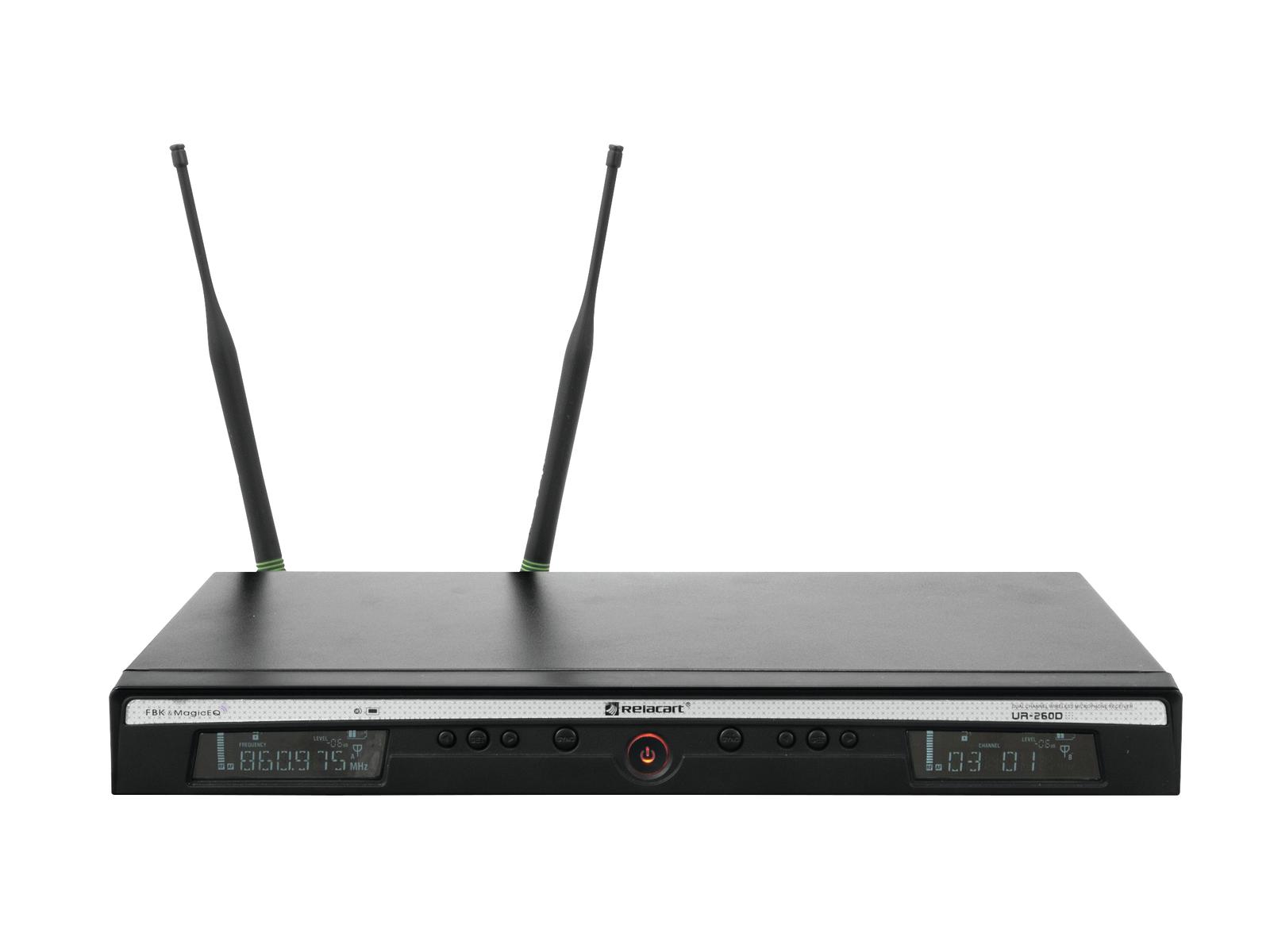

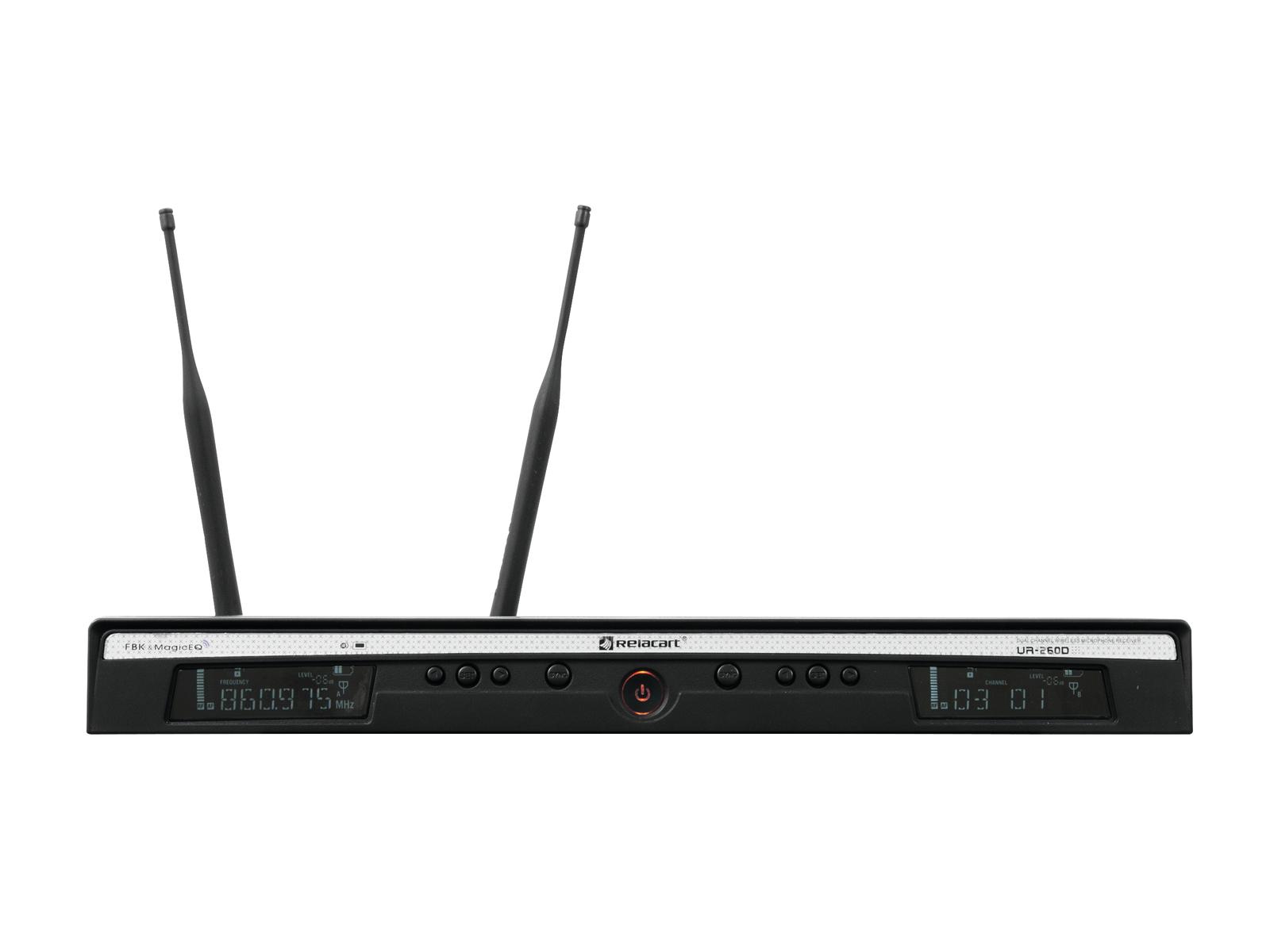

Název produktu: Relacart UR-260D, 2-kanálový UHF přijímač
Značka: Relacart
Specifikace: System: True diversity, 2 channels
Carrier frequencies: UHF 823-832 MHz and 863-865 MHz
Receiving frequencies: 90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth: 11 MHz
Deviation: 45 kHz
Frequency stability: 0.0005 %
T.H.D.: <0.5 % at 1 kHz
S/N ratio: >100 dB
Modulation method: FM
Coverage: 80 m (with line-of-sight)
Frequency range: 45-18000 Hz (3 dB)
Sensitivity: 5 dBV (S/N >60 dB at 25 deviation)
Audio output: 2 x XLR, bal.
6.3 mm jack, unbal.
Antenna inputs: 2 x BNC (supply 8 V/150 mA)
Communication: LAN (TCP/IP)
for DSP programming via Ethernet
Signal processor: 96 kHz, 24 bits
Power supply: 12 V DC, 1 A
via supplied power unit connected to 100-240 V AC, 50/60 Hz
Power consumption: 12 W
Dimensions: 410 x 43 x 225 mm
Rack installation with 1 U
with supplied mounting brackets
Weight: 2 kg
Hmotnost: 3,1 kg
Kod produktu: 13055210
EAN: 4026397537048
Počet kusů skladem: 0
Dodání za: 5 dní
