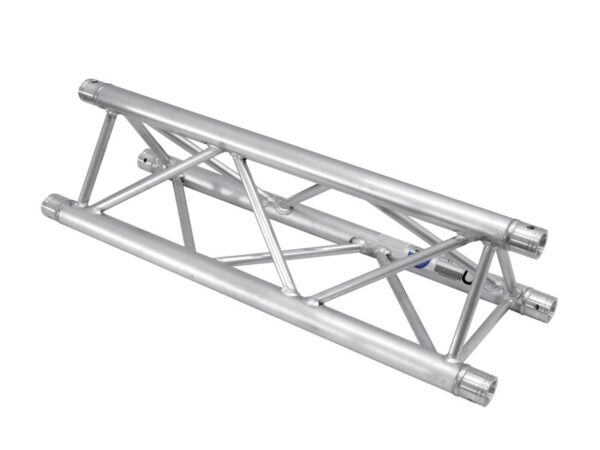

Trilock E-GL33 290 3-way cross beam

3890

TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessories, this system is highly versatile and offers unlimited design possibilities.The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product! ALUTRUSS elements are made in Europe and welded by specially trained welders certified by the German SLV association.Please note: this truss system must never be combined with other systems!
3-point truss systemStrong EN-AW 6082 alloy for high loads
Easy installation
Low weight

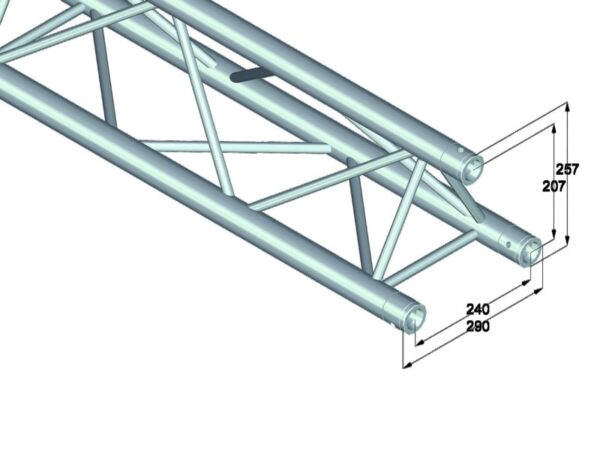

Distance center – center: horizontal 240 mm, vertical 207 mm
For exhibition and shop installers, discotheque and theatre installations
1 x Connection set included
Trusspipe: 50 mm
Made in Europe

Trusspipe: 50 mm x 2 mm
Color: Alu colored
Trusspipe: 50 x
Welding material: AlMg 5
Welding technique: TIG-welding
Alloy: AIMgSi1 T6
Strut diameter x thickness: 20 x 2mm
Length: 290 mm
Width: 290 mm
Height: 257 mm
Weight: 2,65 kg
Dodání: 5 dní

Katalogové číslo: DS32850915 Kategorií: , , , ,

TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres. Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessories, this system is highly versatile and offers unlimited design possibilities.The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product! ALUTRUSS elements are made in Europe and welded by specially trained welders certified by the German SLV association.Please note: this truss system must never be combined with other systems!

3-point truss systemStrong EN-AW 6082 alloy for high loads

Easy installation

Low weight

Distance center – center: horizontal 240 mm, vertical 207 mm

For exhibition and shop installers, discotheque and theatre installations

1 x Connection set included

Trusspipe: 50 mm

Made in Europe

Trusspipe: 50 mm x 2 mm

Color: Alu colored

Trusspipe: 50 x

Welding material: AlMg 5

Welding technique: TIG-welding

Alloy: AIMgSi1 T6

Strut diameter x thickness: 20 x 2mm

Length: 290 mm

Width: 290 mm

Height: 257 mm

Weight: 2,65 kg

Oddělení: Hudební nástroje
Sekce: PÓDIOVÁ TECHNIKA > Konstrukce > Hliníkové konstrukce > 3-bodový systém > Trilock E-GL
Jméno produktu: Trilock E-GL33 290 3-way cross beam
Výrobce: Alutruss

Skladem za: 5 dní
