8 selectable chime settings
Assignable to individual or all 4 zones
Up to 1km remote wiring over CAT5
3.5mm aux input
Supplied with 1m RJ45 patch lead
For use with the RM244V amplifier (953.144UK)
Sekce: ZVUKOVÁ TECHNIKA -> Mikrofony -> Kabelové (klasické) -> Konferenční

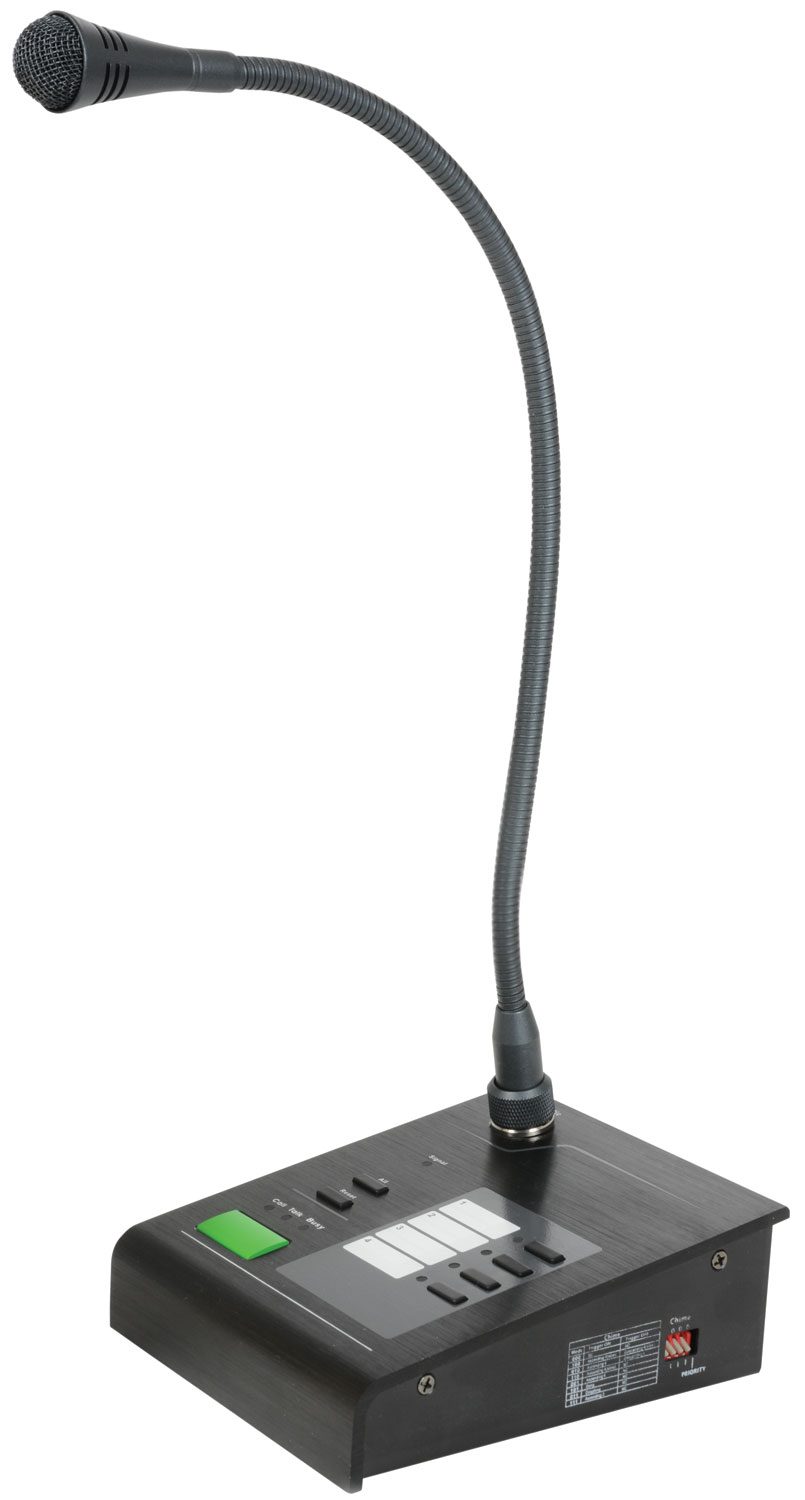

Druh produktu: Call Station for RM244V Mixer Amplifier
Název produktu: Adastra CS4, komunikační stanice pro mixážní zesilovač RM244V
Značka: Adastra
Specifikace: Dimensions: 460 x 140 x 115mm
Weight: 670g
Max. connection length: 100m (CAT5 cable) or 1km with optional 24Vdc adaptor

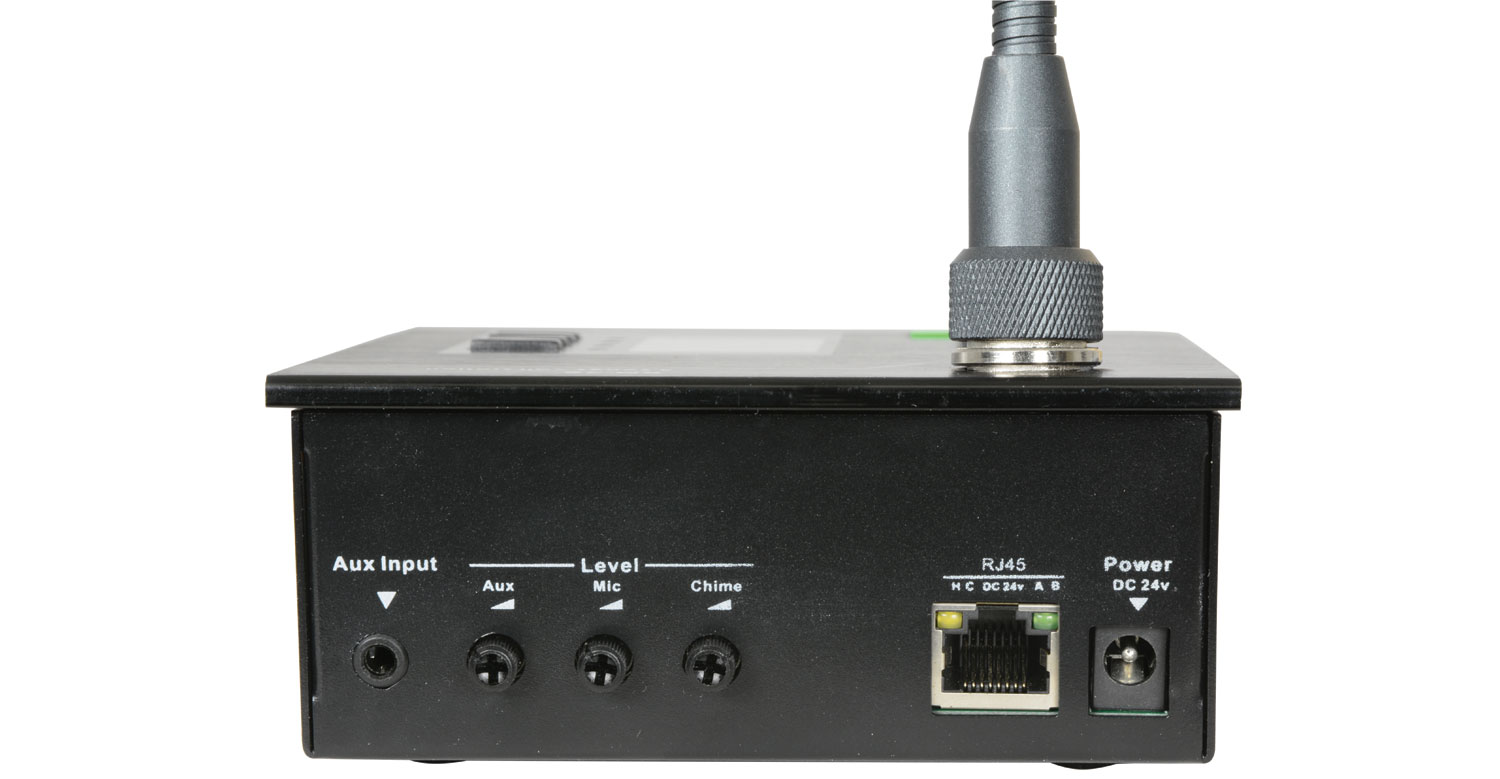

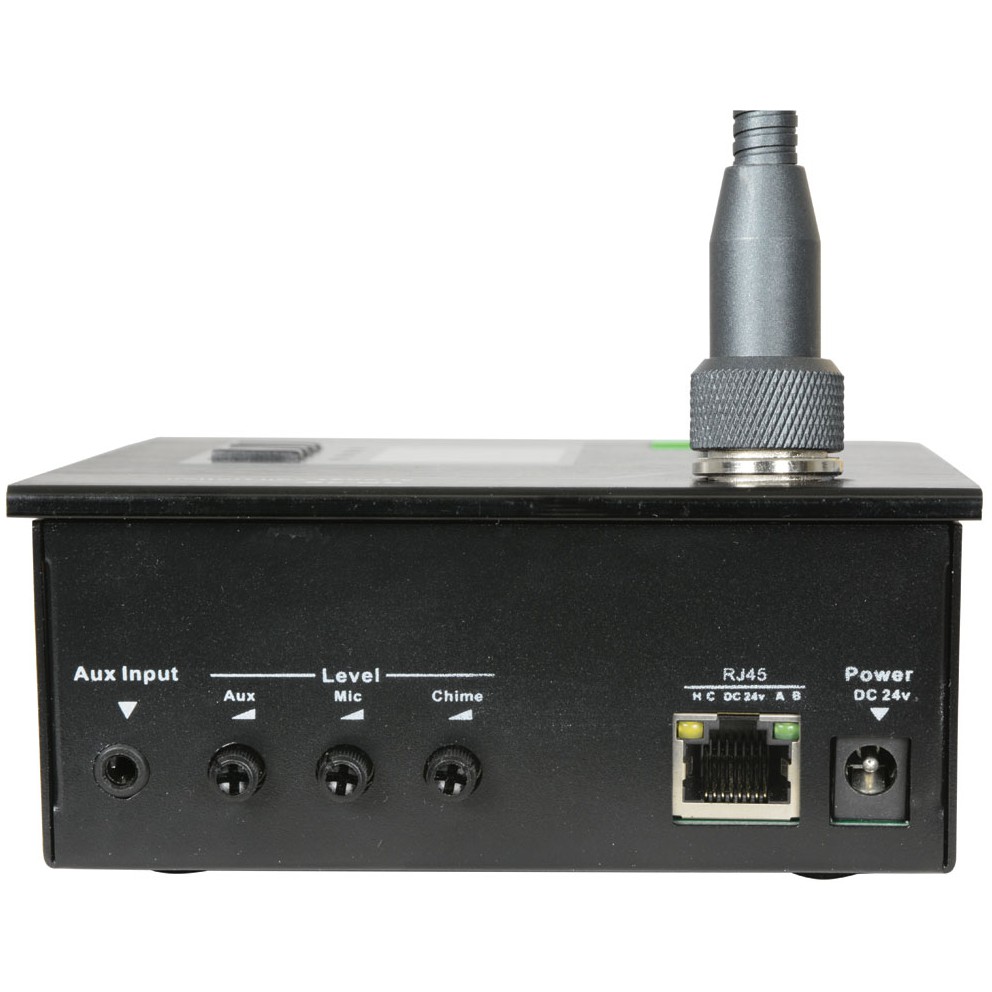

Connectors: RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
Power supply: 24Vdc, 500mA from RJ45 or optional adaptor
Output impedance balanced: 600 Ohms
Output level: 10dBV
Input level Mic: -46dBV
Input level Aux: -10dBV
Input impedance Mic: 600 Ohms
Input impedance Aux: 50k Ohms
S/N ratio: -60dB (all channels selected)
Interface: RS-485 control
Zone assign: 4 zones or all selectable
Frequency response (-3dB): 150Hz – 22kHz
Capsule: Back electret condenser
Polar pattern: Cardioid

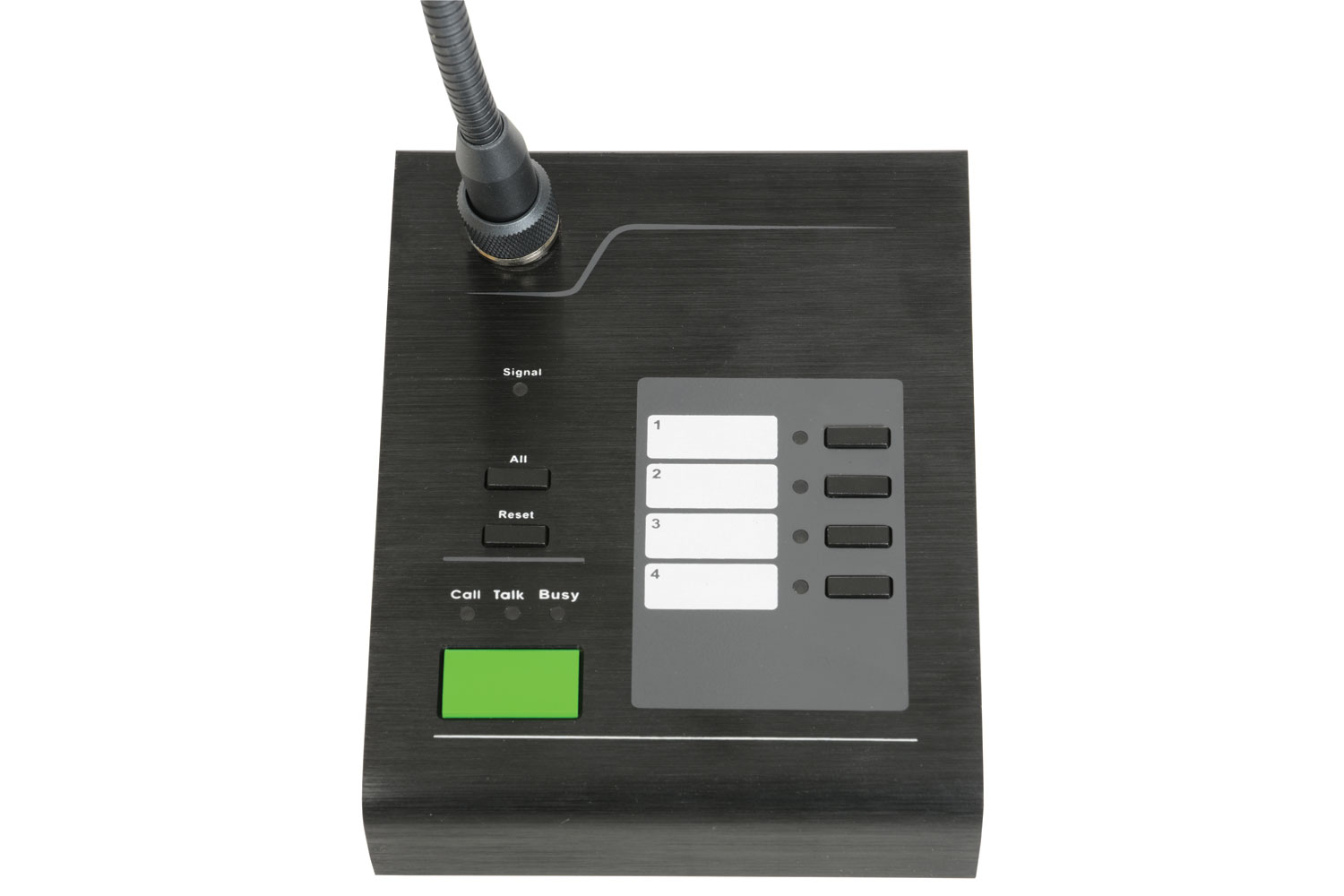

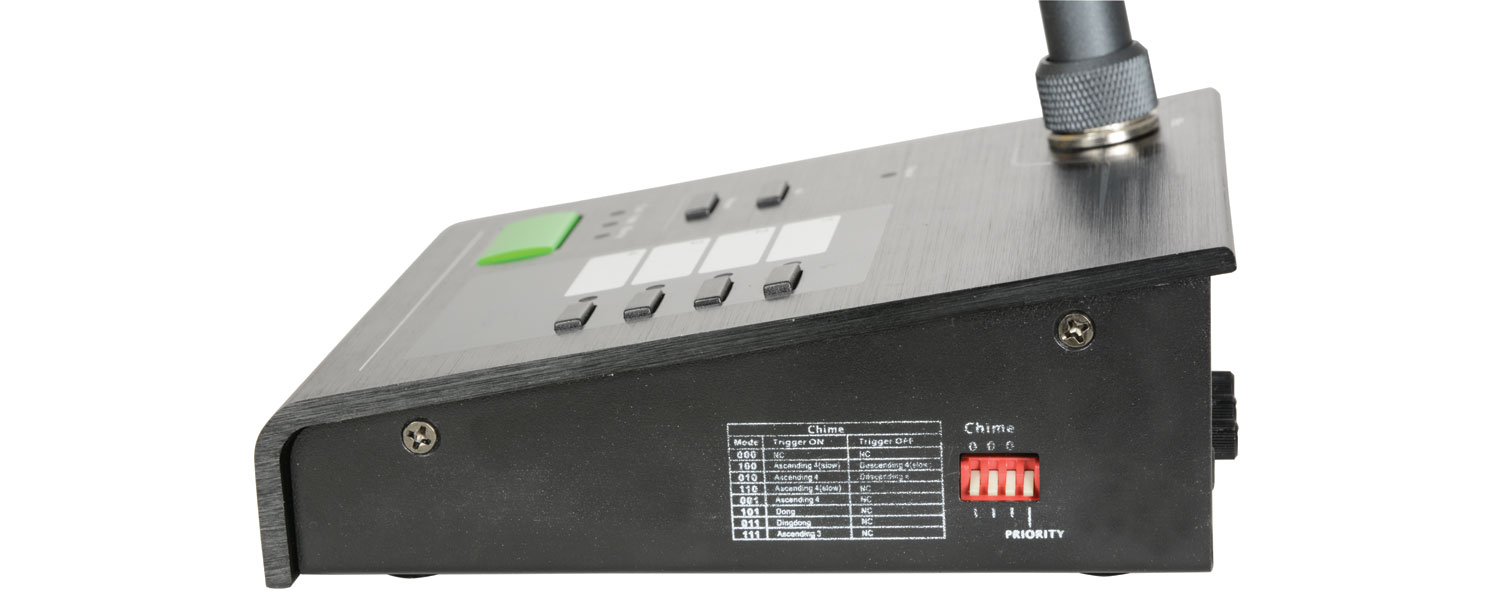

Controls: Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
Hmotnost: 0,9 kg
Kod produktu: SA953146
EAN: 5015972184455
