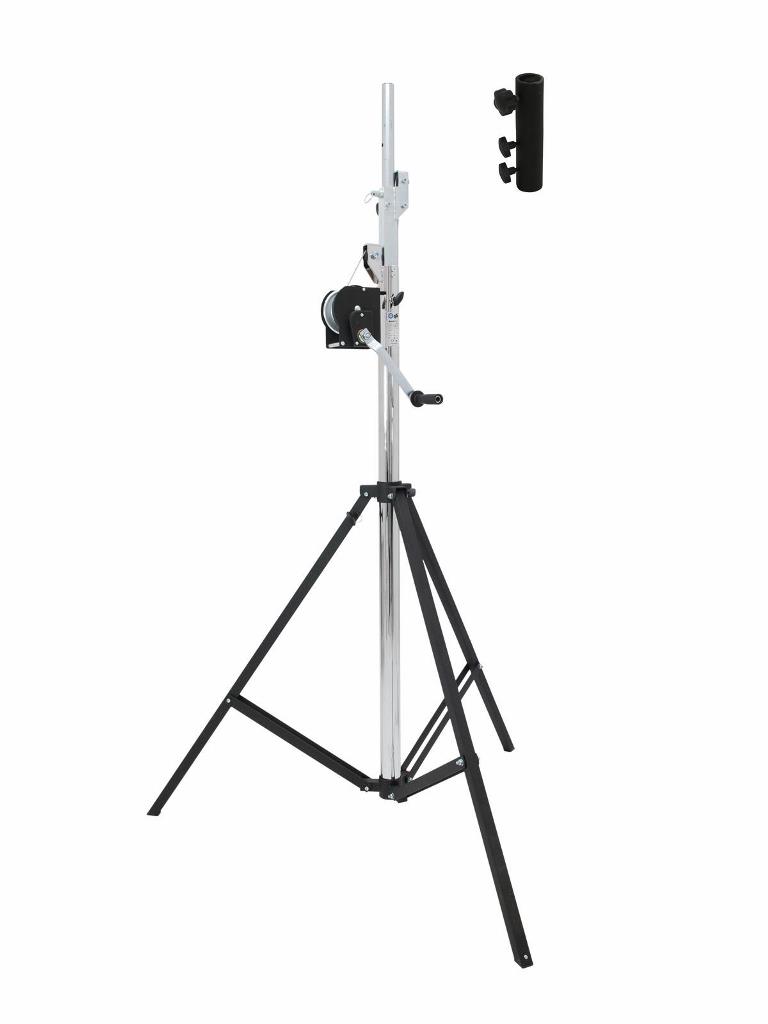

59007040 EUROLITE STT-400/85 Winch Stand T?V/GSThe EUROLITE STT-series are winch-driven stands manufactured under strict TUV monitoring. These stands boast of high quality, exraordinary ruggedness, highest versatility and high stability. The production is monitored by the German T?V S?D which means that they comply with the highest safety standards.The GS mark signals to the buyer, customer, or consumer that the chosen product as well as the user manual and production (process) have been tested by an authorized institution such as T?V S?D, with priority being given to aspects of safety. In the meantime, the German GS-mark has been recognized as one of the crucial marks within product safety.
59007040 EUROLITE STT-400/85 Winch Stand T?V/GSHigh-quality winch-stand, max. load 85 kg, max. height 400 cmMade of steel
T?V/GS certified, certificate available
CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available
1-gear winch for easy lifting of the loads
Automatic braking system
Safety-pins for mechanic locking
Ideal for mobile, professional lighting-systems or PA-systems
Easy handling
T?V S?d
59007081 EUROLITE STV-3529 Adapter longMassive adapter for 35 mm tube, with 28 mm TV spigot, max. load WLL 100 kgFor stands with 35 mm telescopic tube
Connection element for cross beam with 28 mm spigot
With M6 and M8 fixation screw
Heavy version for highest stability
Sekce: SVĚTELNÁ TECHNIKA -> Příslušenství -> Zvedáky
Druh produktu: High-quality winch-stand, max. load 85 kg, max. he
Název produktu: Eurolite Set STT-400/85 Winch stand + STV-3529
Značka: Eurolite
Specifikace: 59007040 EUROLITE STT-400/85 Winch Stand TÜV/GS
Maximum carrying capacity: 85 kg
Minimum load: 25 kg
Height: maximum: 4,00 m above 3 sectionsminimum: 1,75 m
Attachment: Flange system 35mm
Steel rope: 4 mm
Base area diameter: 1,60 m
Transport dimensions: 1,75 x 0,30 x 0,27 m
Weight: 23,95 kg
59007081 EUROLITE STV-3529 Adapter long
Maximum load BGV C1 (8-fold): 50 kg
Max. load WLL (4fold): 100 kg
Strength: 6 mm
Width: 85 mm
Depth: 50 mm
Height: 195 mm
Weight: 1,52 kg
Receiver: D = 36.5 mm
Receiver: L = 80 mm
Adapter receiver: D = 30 mm
Adapter receiver: L = 115 mm
Hmotnost: 29 kg
Kod produktu: 20000030
EAN: 4026397570786
Počet kusů skladem: 0
Dodání za: 5 dní
