Cable plug for 5 – 15 mm cable O.D. rangePremating safety ground
Quicklock with securing lever
With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
Appropriate plugs are identified by mechanical keyways and by color
Connector type: Powercon (blue)
Plug construction: Plug for cable
Sekce: ZVUKOVÁ TECHNIKA -> Kabely a konektory -> Konektory -> Powercon
Druh produktu: Cable plug for 5 – 15 mm cable O.D. range

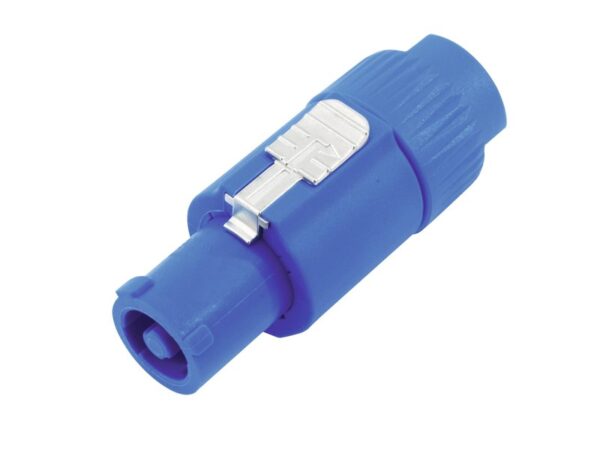

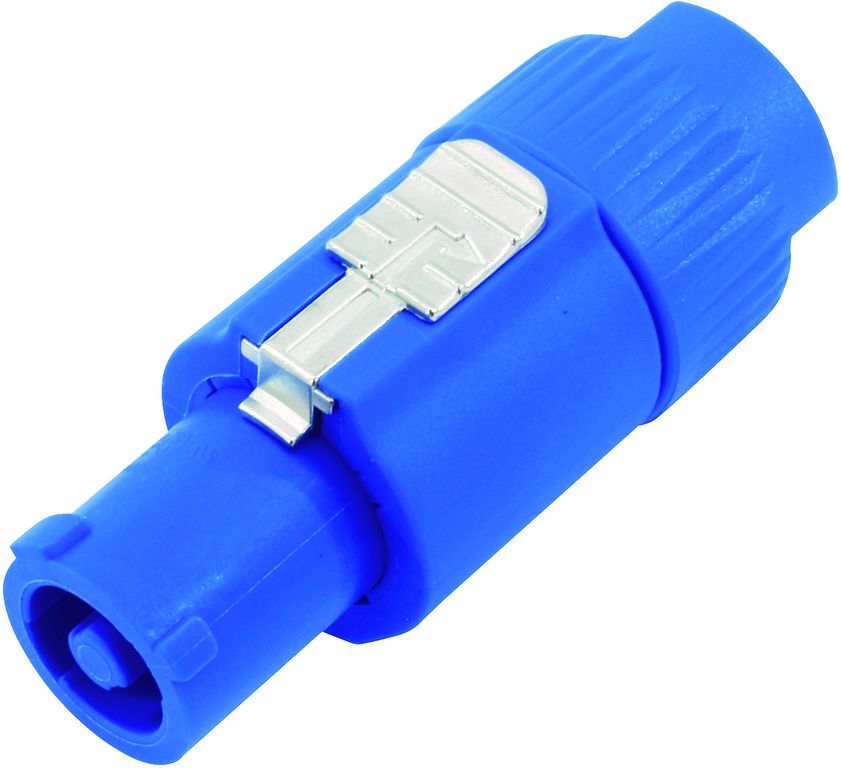

Název produktu: Neutrik PowerCon blue NAC3 FCA
Značka: Neutrik
Specifikace: IP classification: IP20
Weight: 0,04 kg
Number of contacts: 2 + PE
Rated current per contact: 20 A RMS
Rated voltage: 250 V AC
Dielectric strength: 4000 V DC
Contact resistance:
Insulation resistance after damp heat test: >,100 Mohms
Creepage distance: according to IEC 664-1
Cable retention force: = 220 N, depending on cable dia and material
Wiring: screw-type terminals or soldering nom. wire size/contact: 2.5 mm / 14 AWG
Solderability: complies with IEC 68-2-20
Housing: PA 6 30% GR
Insert: PA 6 30% GR
Contacts: CuZn39Pb3 / CuSn6
Contact surface: L+N 20 m Ag plated, Earth 4 m Ag plated
Chuck: POM
Temperature range: -30C to +80C
Flammability: UL94HB
Kod produktu: 30208540
EAN: 7613187002298
