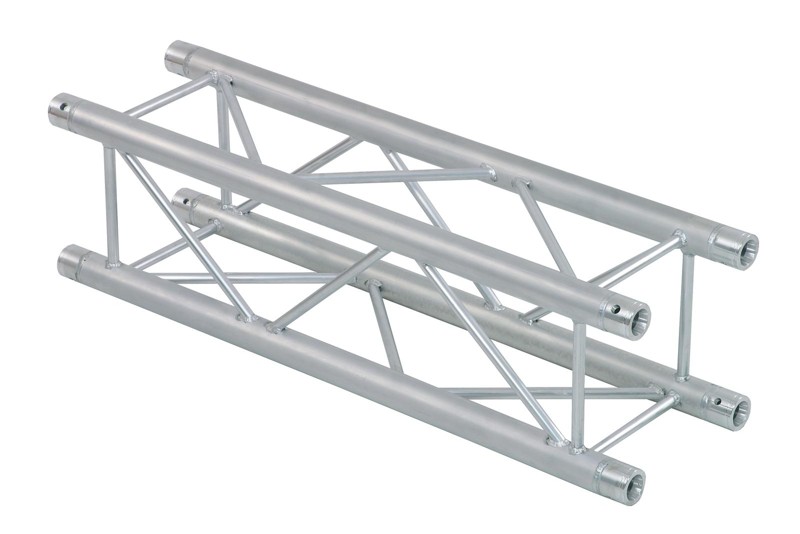

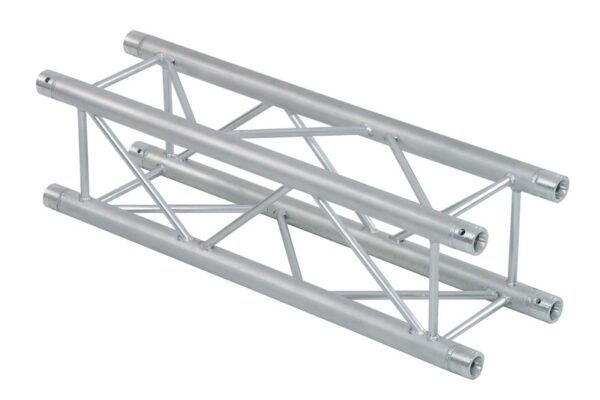

QUADLOCK QL-ET34 4-point truss systemQUADLOCK QL-ET34 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins. QUADLOCK QL-ET34 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The four main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system.With 290 mm outer dimensions, QUADLOCK QL-ET34 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installa
Sekce: PÓDIOVÁ TECHNIKA -> Konstrukce -> Hliníkové konstrukce -> 4-bodový systém
Druh produktu: 4-point truss system
Název produktu: Quadlock QL-ET34-800 4-way cross beam
Značka: Alutruss
Specifikace: Trusspipe: 50 mm x 2 mm
Color: Alu colored
Trusspipe: 50 x
Welding material: AlMg 5
Welding technique: TIG-welding
Alloy: AIMgSi1 T6
Strut diameter x thickness: 20 x 2mm
Length: 800 mm

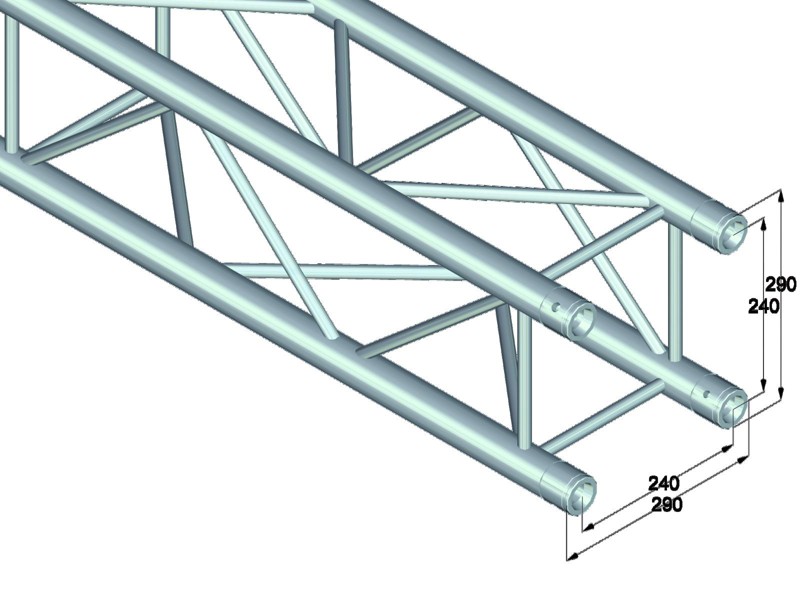

Width: 290 mm
Height: 290 mm
Weight: 5,90 kg
Main chords: 50 x 2 mm
Braces: 20 x 2 mm
Kod produktu: 60306753
EAN: 4026397501667
